MakersDRIVER 5Up PRO

MakersDRIVER 5Up PRO Drives up to 70 3v LEDs



The MakersDRIVER 5UP PRO takes building finished DIY LED fixtures to a new level by simplifying power connections and providing multiple options for dimming control.

Included:

• MakersDRIVER 5UP PRO, with Overlay Cover
• Works seamlessly with the inexpensive MakersCONTROLLER
• 5 Meanwell LDD-H LED Drivers (300mA, 500mA, 700mA, 1A, sold separately)
• Docks into the MakersLED Heatsink (Original and Slim Versions)
• Drives up to 70 3v LEDs up to 1000mA (45V available per channel)
• 5 channels of dimming (14 LEDs/channel)
• Manual dimming interface (requires accessory board, sold separately)
• Multiple external control options available:
– Data interface with MakersCONTROLLER lighting controller (addressable to 5 channels)
– Accepts 0-10V DC analog lighting control signal (requires accessory board, sold separately)
• Daisy chain multiple MakersDRIVERS back to a MakersCONTROLLER
• Powers one 12v Fan (250mA, no extra fan power supply needed!)
• Fan failure detection – Flashes LEDs to alert failure (if fan is detected upon start-up)
• Sockets provided for Meanwell LDD drivers allow for removal, upgrade and replacement
• Utilizes inexpensive 48V DC power supplies (not Included)
• Fused for added electrical safety
• May co-exist with MakersDRIVER 2Up PRO when used with MakersCONTROLLER
• 90 day warranty*

Not Included (check with your vendor!):

• 5 Meanwell LDD LED Driver Modules (up to 1000mA)
• 1 48V Power supply
• Fan Power Source
• LEDs

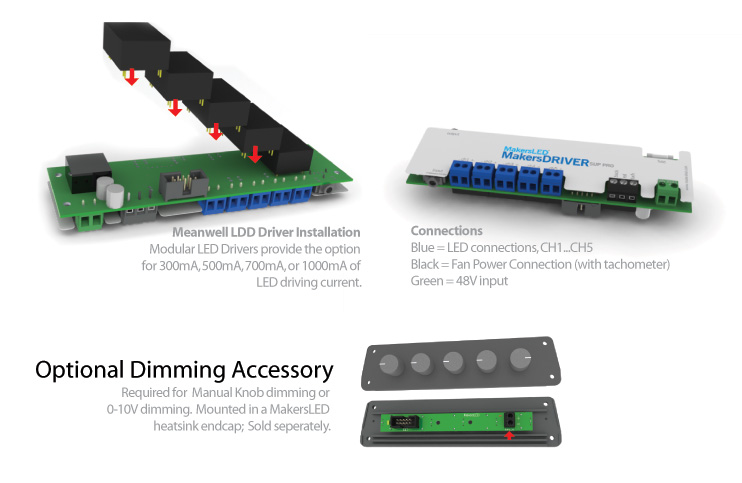

MakersDRIVER 5up Installation and Accessories

Recommended for MakersLED Heatsinks 1ft and greater.
*Warranty: 90 day limited warranty against defects in materials and workmanship. MakersLED LLC will determine the root cause of the defect, and your item may be repaired or replaced free of charge. Customers pay for shipping to our service location and we pay for the return shipment. Warranty does not cover failure caused by accident, misuse, abuse, alteration, or faulty installation.
