Accessories

 MakersLED SLIM Heatsink Fan

Maker_LED_SLIM_Heatsink_Fan_MountedPart: MakersSLIMFan

Very Quiet,  Solidly Built, and Fits the MakersLED SLIM Heatsink perfectly (#4-40 mounting hardware included).

  • Power: 12V, 0.10A
  • Outer Dimensions: 120mm * 83mm * 23mm (tall)
  • Mounting Holes: 107mm (center to center)
  • 83mm Diameter Fan Blade
  • Sleeve Bearing
  • Tinned wire leads (no connector)
  • Wire Lead: 300mm (~12 inch) UL Listed 26 Guage Wire
  • Blows Downward into Heatsink Fins

Regulatory/Compliance:

  • CE saftey listing
  • RoHs / lead free

MakersLED Slim Fan Data Sheet (PDF)

Cosmetic Cover not included. Free 3D Models Available for 3D printing at:
http://www.thingiverse.com/thing:1050462

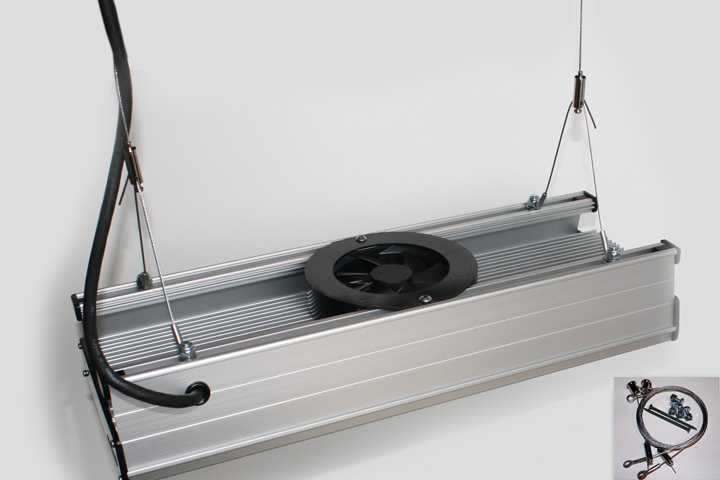

Hanging KitMakers LED Hanging Kit

Part: MakersHK

Compatible with both MakersHeatsink Original and MakersHeatsink Slim

  • Includes:
  • 2 Y-Hanger Cables
  • Adjustable Cable Length, up to 7 ft (allows easy raising and lowering)
  • Stainless steel hex cap screw and hex lock nut to mount to MakersLED fixture
  • Ceiling mounting screws
  • Installation Details





MakersLED Additional Fan and Plastics kitMakersLED Fan & Plastics Kit

Part: MakersFNPL

  • Includes:
  • 1 92mm ball-bearing fan
  • 1 fan cover, 2 end caps
  • 4 end plugs, and associated mounting hardware





Hardware KitsMakers_LED_Heatsink_hardware_4-40_nylonWashers

MakersHeatsink Original

Part: MakersHW25

  • Includes extra LED mounting hardware for MakersLED heatsinks.
  • 50qty #4-40 3/8″Screws
  • 50qty #4 nuts
  • 50qty Nylon Self-Retaining Washers

MakersHeatsink Slim

Part: MakersHW25S

  • Includes extra LED mounting hardware for MakersLED heatsinks.
  • 50qty #4-40 5/16″Screws
  • 50qty #4 nuts
  • 50qty Nylon Self-Retaining Washers
